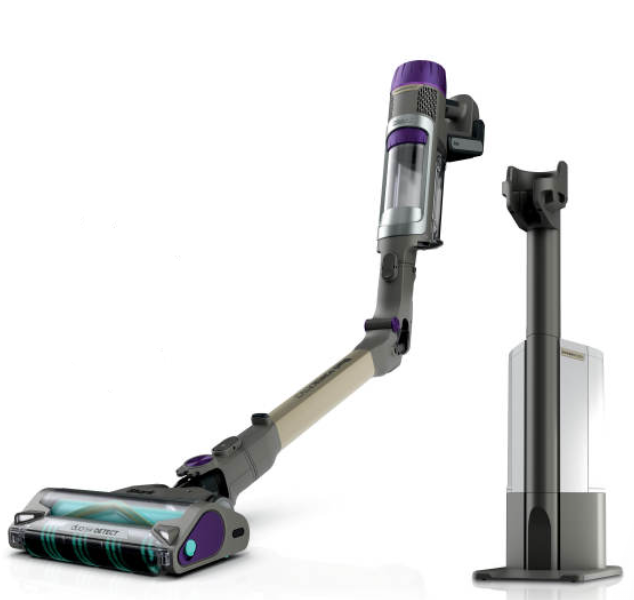

This article contains the FAQs for the IP3000 Series Shark® POWERDETECT™ Cordless Vacuum. This supports the following model numbers: IP3251 and IP3251C.
Attachments
Getting to know the attachments
Getting to know the attachments
General Questions
Is the battery removable?
Yes the battery is removable.
What do the lights on the battery mean?
Solid White LED: Battery pack is fully charged.
LED pulses yellow: 0 - 75% charged.
LED pulses green: 75% - 100% charged.
How do I charge the battery and how long does it take to charge?
To charge the battery for the IP3000 Series, place your vacuum on the Auto-Empty Dock. The batteries come with DC jack capabilities, but right out of box they can only be charged on the Auto-Empty Dock.
To charge the battery for the IP1000 Series, plug the charger included in your box into the battery. To charge the battery or extra batteries off the Dock, you can purchase a charging cord on SharkClean.com with the sku name:XCHRIP1000.
A full charge takes approximately 6 hours.
Note: When purchasing an extra battery online (XBATR640US), a charging cord will come in the box.
How long will the battery run?
The initial charge on the battery pack (out of the box) is approximately 30%. Charge the battery completely before first use.
During first use, run the battery down until it is completely out of power. This will condition the battery.
Runtimes are based on a new, fully charged battery. Like all lithium-ion products, the battery will naturally decrease in capacity over time. In ECO mode, the battery can achieve up to 70 minutes of runtime.
What if the battery is warm to the touch or indicates that it's too warm to charge?
The battery may feel warm during use. This is normal, as batteries increase in temperature slightly during discharge.
If the battery feels uncomfortably warm, stop using the vacuum and allow the battery to cool.
For IP3000 Series, dock your vacuum on the Auto-Empty Dock.
For IP1000, plug the charging cord into the port on the battery.
Leave the battery plugged in and charging will resume automatically when the battery has reached a normal temperature. If the battery is too warm after use, the charger will pause until the battery cools before it begins charging.
How do I assemble the vacuum?
Insert the wand into the floor nozzle.
Insert the handheld vacuum into the wand.
For proper operation, ensure all parts are firmly clicked into place.
How do I use the different cleaning modes?
Press the Power button to turn the vacuum on or off. The vacuum will automatically start in Detect Mode.
To clean in ECO mode, press the mode selection trigger until the green leaf icon (see below) illuminates on the handheld screen. The brushrolls will spin slowly to clean bare floors and small area rugs.
Press the Mode Selection Trigger button again to cycle to Boost and Detect modes.
To engage the brushroll, step on the floor nozzle and tilt the handheld vacuum back.
How do I clean above-floor areas with or without accessories?
To clean above-floor areas, press the wand release button at the top of the wand to detach the handheld vacuum. Attach an accessory to the handheld vacuum for more cleaning options.
For more cleaning reach, leave the handheld vacuum on the wand and detach the wand from the floor nozzle. Press the nozzle release button on the bottom of the wand, then gently pull up on the handheld vacuum to remove the wand. Attach an accessory to the handheld vacuum or the wand and begin cleaning.
In all settings, for an added boost of suction power, press the suction power mode button to toggle between ECO, DETECT, and Boost modes. To save battery power, select ECO mode. For everyday cleaning, optimized runtime, and power, select DETECT mode. For an extra burst of power, select Boost mode.
How do I store my vacuum?
Store your vacuum securely and out of reach of children or pets.
On the IP3000 Series, you can dock your vacuum on the Auto-Empty Dock for storage and charging.
Why is my vacuum hard to push and pull on carpets or rugs?
If you're finding it difficult to push and pull the vacuum on carpets, this is likely due to the strong suction power of your unit. To make it easier, you can switch to Eco Mode by using the trigger under the handheld.
Rest assured, Eco Mode still delivers powerful suction to meet your cleaning needs while being gentler on your carpets and rugs while being easier to maneuver.
What if I experience small static shocks while vacuuming?
Certain dry conditions in winter or dry desert areas may cause common static electricity to build up in the vacuum, producing small shocks like what you might experience from contact with doorknobs, wool sweaters, or blankets. This is harmless. To avoid this, we recommend moisturizing your hands and/or removing wool socks or sweaters prior to vacuuming.
What does the light on the nozzle mean?
The LED light on the nozzle are a DETECT Mode indicator with three cleaning stages
WHITE: Low Suction, Floor is Clean
LIGHT PURPLE: Medium Suction, Medium amount of debris on the floor
DEEP PURPLE: High Suction, Heavy amount of debris on the floor
What does the moon icon mean on the Auto-Empty dock?
The moon icon is the Quiet Mode button. Engage the slide on the top of the dock that shows an image of a moon. This will initiate Quiet Mode. When the dock is in Quiet Mode, you can dock the vacuum without auto evacuation occurring.
How do I assemble my Auto-Empty Dock?
Make sure the Dock is facing upright. Slide the Charging Post into the slot on front of dock until it clicks. Place the dock on the floor near a wall outlet. Plug the Power Cord into the outlet, then connect the cord to the port on the back of the charging post. Store the crevice tool accessory on the mount on the dock.
My LED display is flashing between icons, What does this mean?
When the LED display is flashing repetitively between icons without input, it is representative of a Error message due to a failure on the product.
Please refer to the Troubleshooting
The battery seems to have a shorter runtime than expected. What should I do? (Out of the box)
The initial battery charge is approximately 30%. Charge the battery completely before first use. During first use, run the battery down until it is completely out of power. This will condition the battery. Like all lithium-ion products the battery will naturally decrease in capacity over time.
What setting should I use on throw rugs?
Eco Mode is the recommended setting for throw rugs.
How to Install the dust cup and filters
How to Install the dust cup and filters
Cleaning and Maintenance
When and how do I clean the filters?
Filters may need to be cleaned if the vacuum stops picking up dirt.
To clean filters, rinse them with water only. Allow all filters to air-dry completely for up to 48 hours before reinstalling to prevent liquid from being drawn into electric parts.
Clean the pre-motor filters at least once a month and post-motor filter at least once a year. Tap off loose dirt between washes when needed. More frequent cleaning may sometimes be necessary with heavy use.
When and how do I empty the dust cup?
For optimal performance, empty the dust cup each time you vacuum. With the IP3000 Series, the dust cup will automatically empty once docked.
To manual empty the dust cup on the IP1000 Series, detach the handheld vacuum from the wand by pressing the wand release button. Position the dust cup over a trash receptacle, then press the dust cup release slide on the left side on the handheld vacuum. Tap gently to empty contents. Remove any debris or hair from the cone-shaped screen inside the dust cup. Wipe the interior of the dust cup clean if needed. Close the dust cup door, pressing it until it clicks into place.
How do I access and clean the brushroll?
Press the soft roller release button on the left side of the nozzle in order to pop out the soft roller. Then, remove the sole plate by using a spare coin to unlock the sole plate (Turn counter clockwise until you hear a click).
To reattach, reinsert the sole plate into the nozzle and use a spare coin to lock the sole plate into place (Turn clockwise until you hear a click). Then reinsert the soft roller into the from of the nozzle until you hear a click.
How will I know when to empty my Auto-Empty Dock?
There is an indicator on the top of the dock. When this light illuminates, lift the dust bin off of the Auto-Empty-Dock and empty its contents into a trashcan. Then reinsert the dust bin into the Auto-Empty-Dock.
How do I clean the Auto-Empty dock filters?
The Dust Bin Full indicator will illuminate when the dust bin is full of debris and needs to be emptied. To reset the indicator, remove the dust bin and empty it. To access the the Auto-Empty Exhaust Foam Filter, remove the dust bin. Before removing the Exhaust Foam Filter, vacuum off any fine debris from the surface. Lift the Exhaust Foam Filter out of the dock, then rinse it with water only (do not use soap). Allow the filter to air-dry completely before reinstalling it.
When and how do I empty the Auto-Empty Dock dust bin?
The dock dust bin holds weeks worth of dust and debris. Empty the dock dust bin when the dust bin full indicator light comes on. To remove the bin, lift it out by the handle. To empty the bin, hold it over the trash and press the release button on the side. The bottom will open to release the debris.
Product Specs
What is the Wattage?
450 Watts
What is the Amperage?
3.75 Amps
What is the Voltage?
21.6 Volts
What are the dimensions?
IP3000 series - 10.24" (L) x 18.6" (W) x 46.34" (H)
IP1000 series - 10.25" (L) x 15.5" (W) x 45.64" (H)
What is the weight?
IP3000 series - 18.48 lbs for the unit and the Auto-Empty Dock.
IP1000 series - 7.96 lbs.
</>
